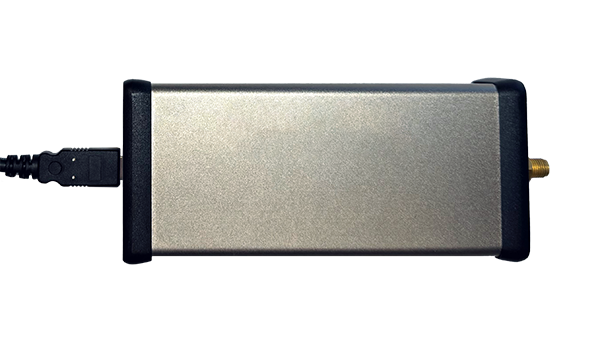

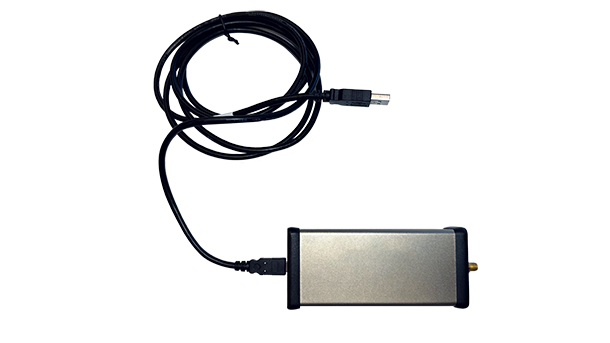

CW and Programmable Sweep Transmitter | 100 MHz – 2.5 GHz (OP714)

Portable transmitter for network commissioning and design

The OP714 is a portable calibrated transmitter, supporting in-building DAS and BDA testing with fixed and sweep features for network design and commissioning of critical communications and cellular networks. It is pre-programmable for use in the equipment room and throughout the coverage area, with multiple transmission modes and support for multi-frequency testing. Also available with calibrated data as OP714-A.

View Datasheet

Features

  • Small form factor and lightweight
  • Amplitude: -40 to +10 dBm
  • Sweep: programable frequency steps multiples of 2.5 kHz and programmable time steps of multiples of 100ms
  • Controllable over USB

Applications

  • In-building and outdoor network design
  • Antenna verification and troubleshooting
  • Commissioning tests in the equipment room

Frequency Range

  • 100 MHz – 2.5 GHz

Specifications

Frequency Range 100 MHz – 2.5 GHz (usable down to 80 MHz)
Frequency Resolution < 1 Hz
Output Power -40 dBm to +10 dBm
Timebase
  • Accuracy (excluding temperature drift): ± 5 ppm / year
  • Temperature Drift: typically 0.2 ppm / °C
  • Adjustable to ± 1 ppm
Typical SSB Phase Noise (1 GHz)
  • 100 Hz Offset Frequency: -68 dBc/Hz (typical)
  • 1 kHz Offset Frequency: -88 dBc/Hz (typical)
  • 10 kHz Offset Frequency: -102 dBc/Hz (typical)
  • 100 kHz Offset Frequency: -105 dBc/Hz (typical)
  • 1 MHz Offset Frequency: -132 dBc/Hz (typical)
AM/FM
  • Modulation Rate: 30 Hz to 40 MHz
  • AM THD: < 1%
  • FM THD: < 0.1% (0.01% typical)
Pulse
  • Pulse Width: 6 ns to 25 ms
  • Duty cycle minimum: 0.00025% (pulse period ≤1.0 s)
  • Duty cycle maximum: 99.9% (“off” time > 6 ns)
  • On / off ratio > 45 dB (typically 60 dB)
Multi-Tone
  • Tone count: 2 to 123 with optional center notch
  • Tone spacing: 1 kHz to 10 MHz
  • Tone Phase Relationship: parabolic or random
Operating Temperature Standard 32°F to 122°F (0°C to +50°C)
Dimensions 5.5″ x 2.25″ x 1.0″ (140mm x 57mm x 25mm)
Weight 0.5 lb. (227 gm)
Interface USB 2.0
System Requirements Windows Operating System, x64_86 architecture

Specifications subject to change without notice.
